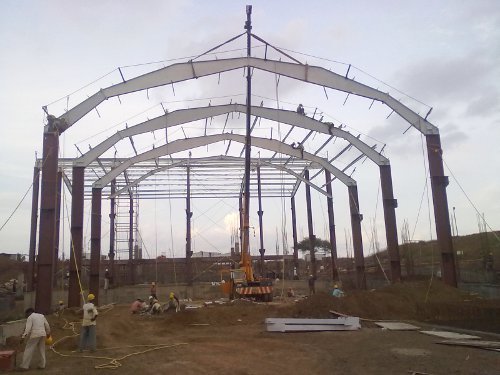

PRE-ENGINEERED BUILDING SYSTEM

product-img

Pre Engineering Building Structures are also one of the most exclusive and finest quality products which we are manufacturing, supplying, trading as well as providing the services for, in almost all the regions of the country. These Pre Engineering Building Structures are used by our clients in several residential, commercial as well as industrial construction processes which not only provides ease in the process but also better reliability and long lasting lifetime. We are offering these Pre Engineering Building Structures to our clients at a very attractive range of prices in the market.

We have the strategic and technical abilities to work on any scale while meeting rigorous customer specifications. Close interaction with your team helps us clearly understand your needs. A computer-assisted design helps create a building for a specific use, whether it is for industrial, commercial or institutional occupancy. We offer a one-stop building experience inc(uding design and manufacturing of the rlgid structural frame, beams, purlins and grits, trusses, columns, cladding and roofing, followed by erection and commisioning.
Every building that we make is the result of excellent workmanship. Equipped with hitech machinery, we create beams and columns with close to(erances. Sophisticated welding techniques ensure that the welds are absolutely seamless. Our insistence on using high tensile steel is to manufacture robust frames that can withstand adverse weather conditions (ike earthquakes, high velocity winds and extreme humidity. Stringent quality checks enable us to incorporate safe structural design and offer maximum space utilization.
Our buildings come as an all-inclusive package, which greatly simplifies the installation job. They are supplied as a fully finished product along with steel structure, roofing, cladding and building accessories. With no on-site fabricat1on or welding required, they can simply be bolted together as per the specifications. Moreover, they are virtually maintenance free.

Applications

  1. Industrial Buildings
  2. Service Stations
  3. Workshops
  4. Warehouses
  5. Facility Centers
  6. Site Offices
  7. Processing Units

Goodwill Provide Att Type of TCCS and MG.

  1. Tapered Column Clear Span Upto 60Mtr
  2. Multi Gable Upto 80 mtr
  3. Multi Span (M51) upto 80 mtr
  4. Multi Span (MS2) Upto 80 mtr
  5. Multi Span (MS3) upto 100 Mtr

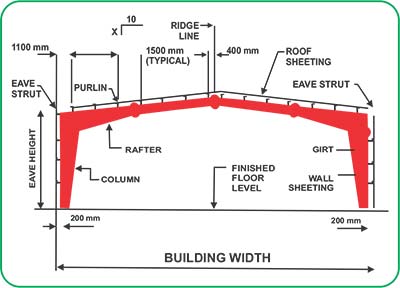

Pre-Engineered Building Frame Details

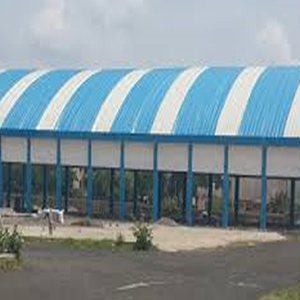

SELF SUPPORTED ROOFING SYSTEM

product-img

In the range of our most exclusive and finest quality roofing systems are also included these Self Roofing Sheet. These self supported roofing systems are basically used for the purpose of providing shaded region for various industrial and commercial purposes. We are not only manufacturing these Self Supported Roofing Structures but also are engaged in its supply, trade and services all across the country.

We are recognized in the industry for offering a Self Support Roofing, which can be easily assembled and offers high security. This is ideal concept to setup a warehouse of up to 36 meters proficiently at one go. Further, owing to features such as less weight, strength, no trusses, durability and cost-effectiveness, these are acknowledged in the market.

Material specifications

  1. Thickness: 0.80 mm to 1.60 mm TCT (Total Coated Thickness)
  2. Metallic Coating: AZ 150 (Higher Coating Optional)
  3. Tensile Strength : 350 mpa
  4. Standard Followed : 15277, ASTM 1397 / A755 / A792
  5. Painting Coating: RMP / S/ñP / PVDF / SDP

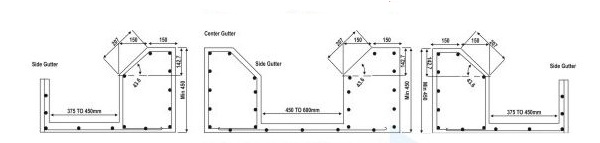

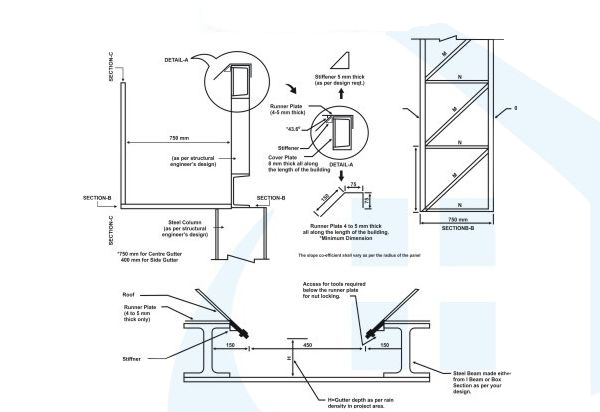

RCC Beam and Cutter Design.

Goodwill Provide Att Type of TCCS and MG

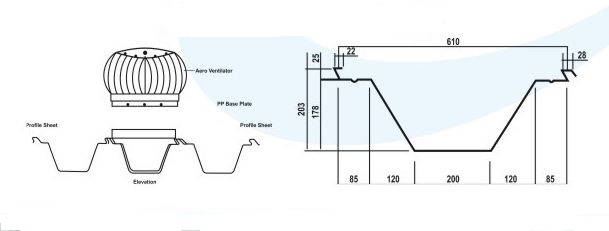

Turbo Ventilators and Sky Light Design

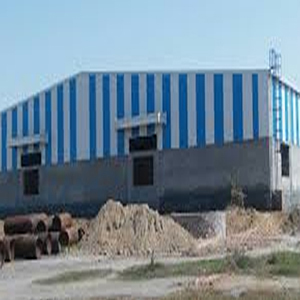

ALUMINIUM COLOR COATED ROOFING SHEETS

product-img

Aluminum Color Coated Sheets are appreciated for their versatility and hence are used in number of applications. Aluminum Color Coated Sheets are suitable for printing, advertisements, packaging, roofing, etc. These Aluminum Color Coated Sheets are made available in different color coatings, length, width and thickness.

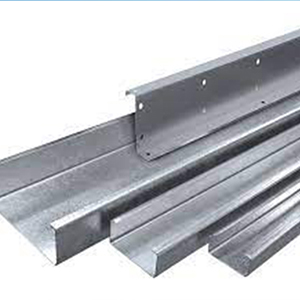

C and Z Purlins

product-img

Aluminum Color Coated Sheets are appreciated for their versatility and hence are used in number of applications. Aluminum Color Coated Sheets are suitable for printing, advertisements, packaging, roofing, etc. These Aluminum Color Coated Sheets are made available in different color coatings, length, width and thickness.

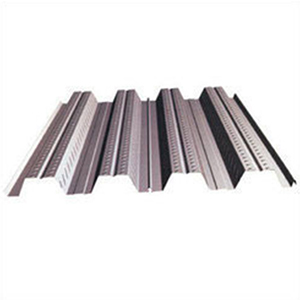

Decking Sheets

product-img

Our company develops world quality Deck Profile Sheets, which are used in composite floor system and permanent form work. We find their installation in floor of high buildings as it saves the quantity of steel. The sheets are light weighted and remain undamaged even during earthquakes. In addition, these are available in standard designs and also offered in customized form. Further, our sheets are fire proof and flexible, which add to their tensile Strength.

Specifications

  1. Thickness: 0.8mm / 1mm / 1.2mm
  2. Color: grey, blue, olive green and light grey brown, poppy red, merlin
  3. Material: steel, mild steel, aluminum, copper

Applications

  1. Warehouses
  2. Shopping malls
  3. Power Plants
  4. Chemical Plants

Features

  1. Attractive look
  2. Weather resistant
  3. Corrosion free
  4. Easy installation
  5. Cost effective
  6. Excellent thermal insulation
  7. Tensile strength
  8. Fireproof
  9. Better anti-earthquake capacity
  10. Available in several standard dimensions and sizes

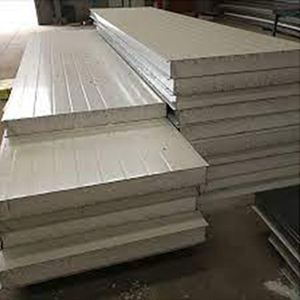

Sandwitch Panels

product-img

We are engaged in manufacturing reliable sandwich panels in variegated specifications. The structures are available in profile, pre-painted, zinc coated, Galvalume Coated Steel and Stainless Steel Sheets. Moreover, we use Polyethane, EPS and Acoustic core material for Insulating these structures. The modular structures are cut-to-length using sophisticated machines and are supplied ready-to-install. These structures are highly durable, portable, leak proof, weather resistant and faster to erect. Available in different colors and materials, we can also customize these structures to suit specific requirements of our clients

Specifications

  1. Galvalume Steel / Galvanized Steel / Aluminium
  2. Thickness:- 0.35mm to 0.70mm thick for Top skin and 0.35ta 0.50mm for Liner (Internal Skin)
  3. Colours :- Bare Millfinish / off White/ Sky Blue / Royal Blue / Toarus Blue / M1st Green / Caufield Green / Brick Red / Shee( Grey etc for Topskin and Pure White for Liner

EPS Panel

The Gooclwill EPS Panel is a stressed skin sandwich panel, comprised df pre-painted steel skins continuously laminated over a fire retardant treated Expanded Polystyrene (EPS) core

Specification

  1. Material:- Galvatume Steel / Galvanized Steel / Aluminium Galvalume Steel / Galvanized Steel / Aluminium
  2. Thickness:- 0.35mm to 0.70rnm thick for Top skin and 0.3fi to 0.50mm for Liner (Internal Skin)
  3. Colours :- Bare Millfinish / off White/ Sky Blue / Royal Blue / Toarus Blue / Uist Green / Caufield Green / Brick Red / Sheel Grey etc for Topskin and Pure White for Liner

Rock wool sandwich panel

Rock wool sandwich panel adopts flbrous rock wool as the cöre material, and color steel plate as its surface layers.

Specification

  1. High rigidity
  2. Reasonable fastening method
  3. Reliable fixing method
  4. Short installation period
  5. Scratch proof

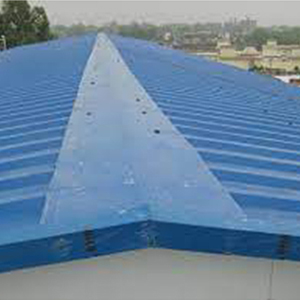

PUF Insulated Panels

product-img

Specially designed crown overlapping for 100% leak-proof construction. Greater strength as compared to simple roofing that will increase purlin spacing and bring down the cost of frame for installation. Lightweight and extremely easy to install. Long life due to special colour coated sheets of superior quality.

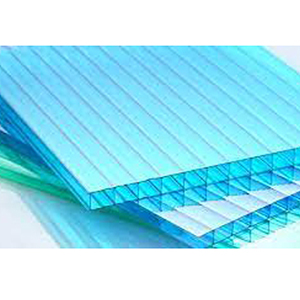

Poly Carbonate Sheets Solid & Muttiwatt

product-img

Polycarbonate is a thermoplastic that comes in a transparent sheet. It is incredibly tough and absorbs minimal moisture, making it resistant to impact damage as well as water damage. It's also flame-retardant and chemical resistant. Polycarbonate sheet is durable, transparent and sanitary.

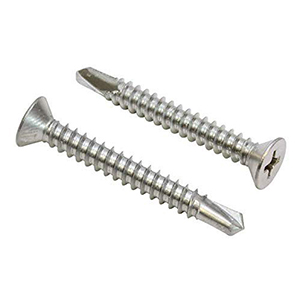

SDS (Self Drilling Screws)

product-img

Self-drilling screws are sometimes known by the brand name, Tek® Screws. Typically, self-drilling screws are used in light gauge applications but a #5 drill point can drill through and fasten up 1/2" of steel. During installation, self-drilling screws will also tap threads to a degree.

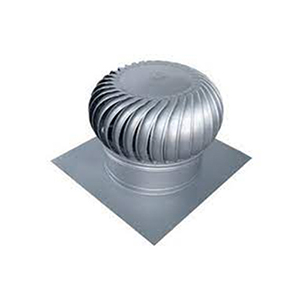

Turbo Ventilators

product-img

Turbo ventilators are round metal vents with fins in them. ... Even the slightest breeze can be enough for the turbo ventilator to rotate. Rotation causes a centrifugal force on the tip of the fins which suck out the stale hot air from inside of the building.

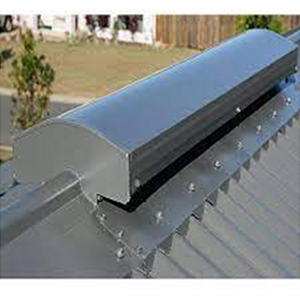

Ridge Vents

product-img

A ridge vent is a type of vent installed at the peak of a sloped roof which allows warm, humid air to escape a building's attic. Ridge vents are most common on shingled residential buildings.
